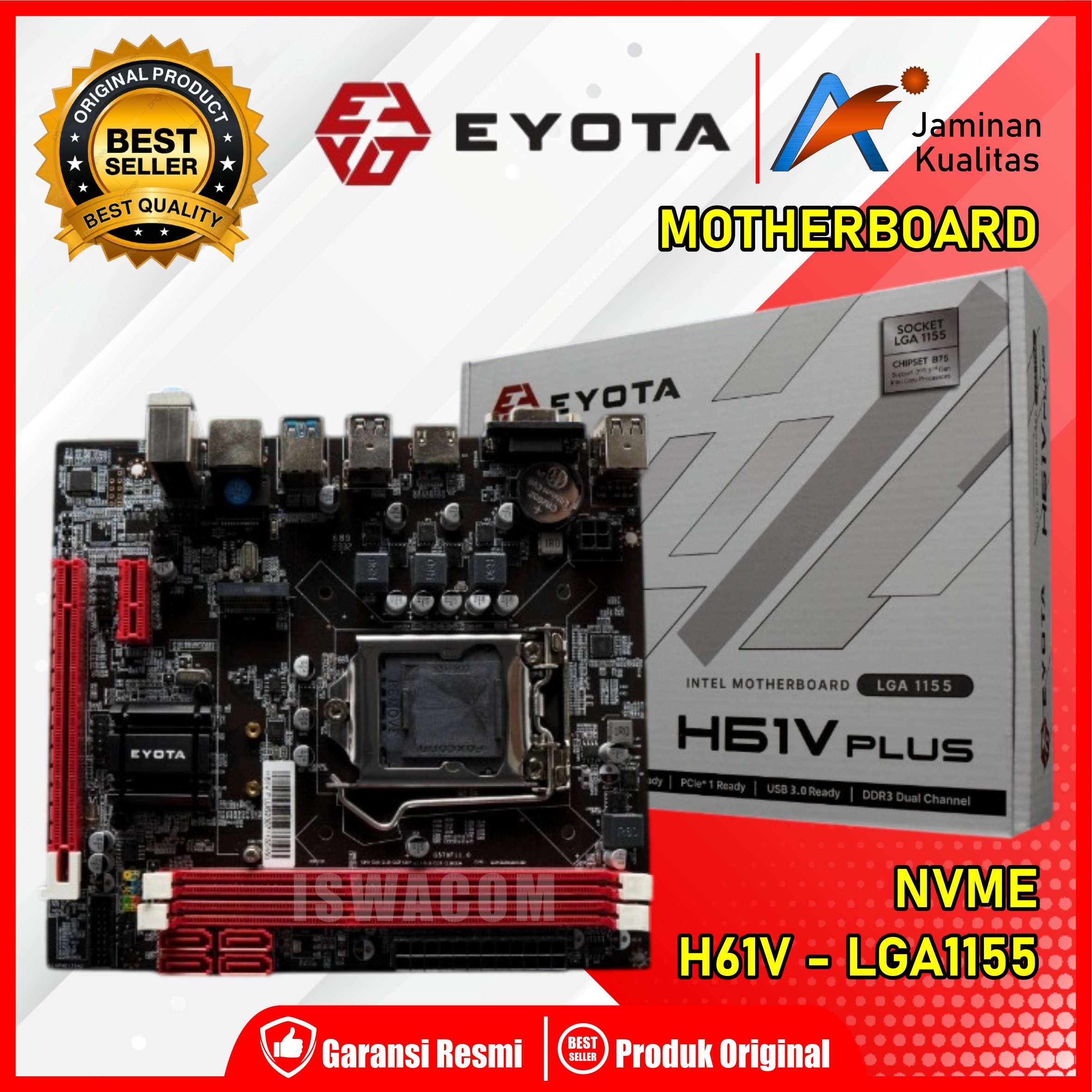

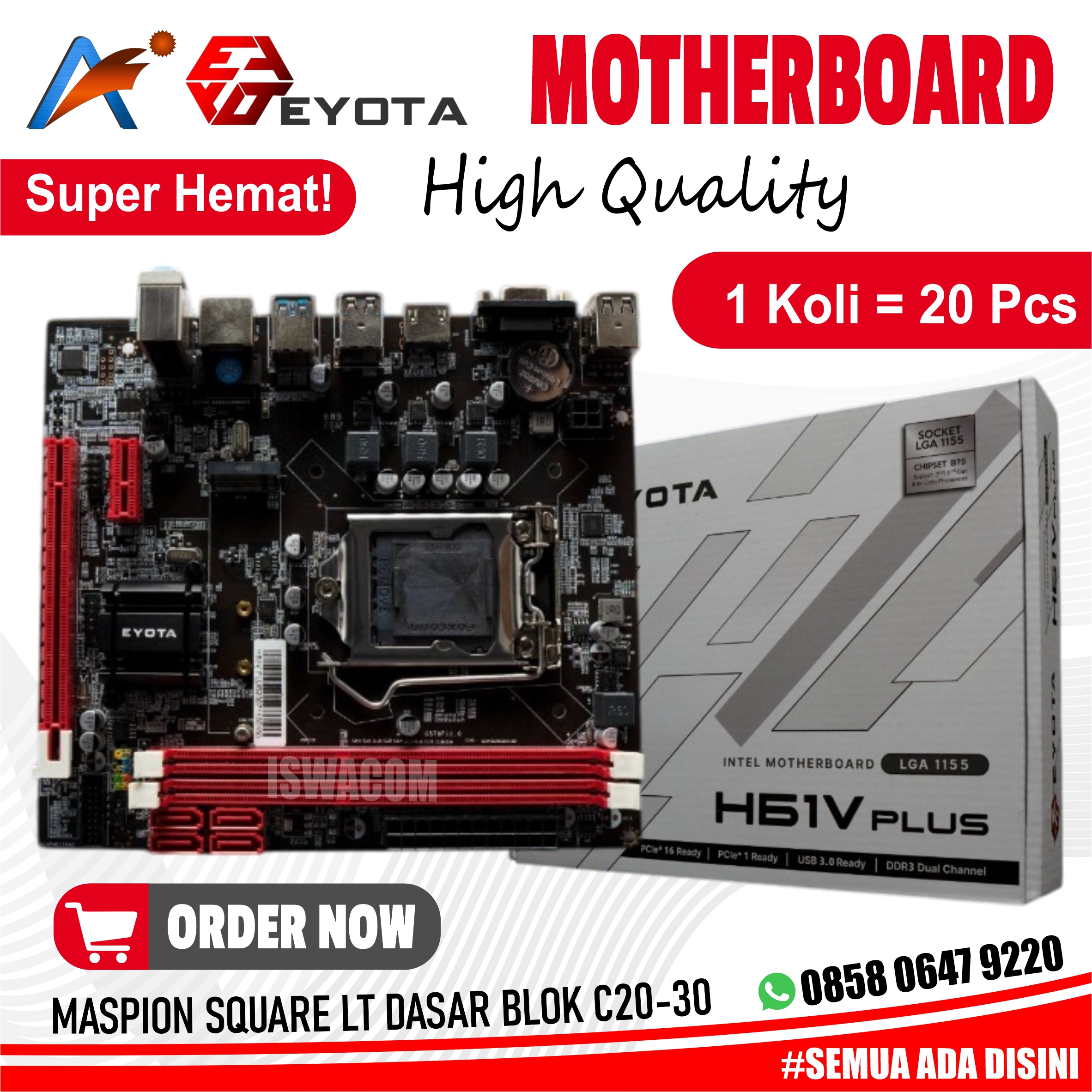

MOTHERBOARD EYOTA H61V PLUS NVME

TIPE: H61VPlus
RAM MAX. 16GB DDR3 (8GB x2)
CPU supports LGA1155 Socket i3 / i5 / i7 series CPU
Chipset: Intel H61
------------------------------------------------------------------------------------------------
Memory: 2 x 240-pin DDR3 slots
Up to 16 GB
Supports dual-channel DDR3 1066/1333/1600MHz memory
------------------------------------------------------------------------------------------------
BIOS: EFI BIOS
------------------------------------------------------------------------------------------------
I/O Interface:
1 x VGA, 1x HDMI
4 x USB 2.0 (compatible with USB 1.1)
1 x RJ45
1 x 3-in-1 Audio port (Line-In / Line-Out/ MIC In)
------------------------------------------------------------------------------------------------
Onboard Interface: 1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
2 x USB connectors (can support 4 x USB 2.0)
1 x F_AUDIO connector
1 x F_PANEL connector
1 x SPEAKER connector
2 x FAN connectors
4 x Serial ATA connection port
------------------------------------------------------------------------------------------------
Integrated Sound: With 6-channel HD Audio Codec onboard
Provides front audio interface and front audio stereo mic interface
------------------------------------------------------------------------------------------------
Integrated LAN: with 10/100Mbps LAN onboard
------------------------------------------------------------------------------------------------
Expansion slot: 1 x PCI Express x16 slot
1 x PCIEXI slot
------------------------------------------------------------------------------------------------
Dimension: 17 x 21 cm
